MARS NANO IP40
MARS NANO is a great solution for general light in public spaces such as offices, conference rooms and showrooms. The high light accuracy and flexibility with lumen packages ranging from 410 lm/m to 3,580 lm/m makes the luminaire also great for museums, galleries, hospitality, residential and civic buildings.
The linear revolution of downlights

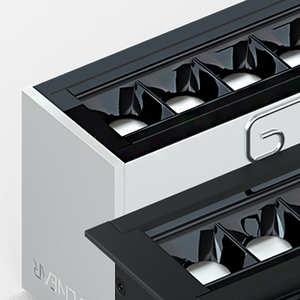

Invisible light and anti-glare louver – UGR < 13 where the light source becomes invisible.

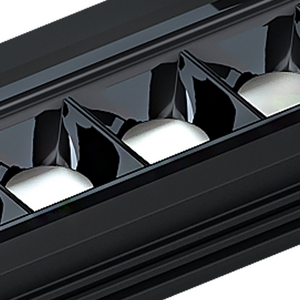

Nano lens optics for an accurate beam control and no direct view of LEDs.

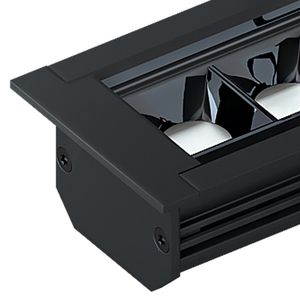

The compact form factor of 31 mm makes the fixture minimally invasive in recessed applications.
MARS NANO IP40

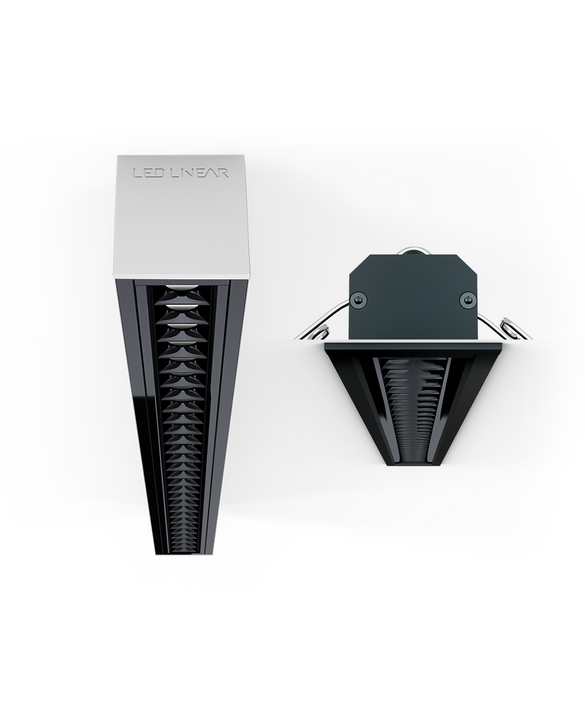

Invisible design meets brightness and highlight quality: MARS is a stylish linear solution for general lighting, offering minimalist design language with maximum lighting and design effects.
Various mounting options are suitable for recessed, ceiling or pendant installations. This innovative lighting system delivers up to 108 lm/W with a color rendering of CRI > 95. The optimum glare control through a black matte finish (Black Anti Glare) enables a UGR glare rating of UGR < 13 and delivers high-quality and pleasant light. Especially user friendly is the simple, tool free installation of the MARS recessed with mounting brackets. The MARS family is available in White and IQ White in combination with different profile and anti glare finishes.
Elektrische & optische Betriebsdaten
| Spannung | VDC (23 Vmin, 25 Vmax) | ||||
|---|---|---|---|---|---|
| LD5 | LD10 | LD15 | LD25 | LD40 | |
| Leistung (W/m) | 5 | 10 | 15 | 25 | 40 |
| Effizienz (lm/W) | 108 | 105 | 105 | 99 | 90 |
| max. Länge (m) | 3,02 | 3,02 | 3,02 | 3,02 | 2,02 |
| CRI (bis zu) | 95 | 95 | 95 | 95 | 95 |
| Farbtemperatur | LD5 | LD10 | LD15 | LD25 | LD40 | |
|---|---|---|---|---|---|---|
| Bestellnummer | CCT Leuchte | lumen/m (lm/m)* | ||||
| W822 | 2.200 K | 410 | 850 | 1310 | 2090 | 3080 |
| W927 | 2.700 K 2.700 K | 420 | 860 | 1330 | 2130 | 3140 |
| W930 | 3.000 K 3.000 K | 420 | 870 | 1350 | 2150 | 3170 |
| W935 | 3.500 K 3.500 K | 430 | 890 | 1370 | 2190 | 3230 |
| W940 | 4.000 K 4.000 K | 440 | 900 | 1390 | 2230 | 3280 |
| W850 | 5.000 K | 540 | 1040 | 1580 | 2470 | 3580 |
Montagemöglichkeiten
Pendant set for installations directly on the ceiling. 2 m wire is cutable on site.
Pendant set with screws for installations directly on the ceiling. Recommended to use every 1 m.
Simple installation by just screw the profile onto the ceiling thanks to pre-drilled holes.
Pre-mounted springs on the backside for easy installation.
