ADONIS
ADONIS is a minimalistic linear luminaire suitable for facade, ceiling direct view applications. A possible output of 2,620 lm/m combined with CCTs ranging between 1,900 K to 4,500 K makes ADONIS a multifunctional luminaire.

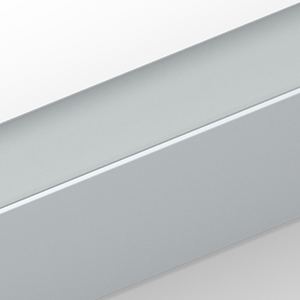

Dot free rigid linear LED line
High protection against vandalism thanks to a robust, powder-coated aluminum profile with an IK10 rating.

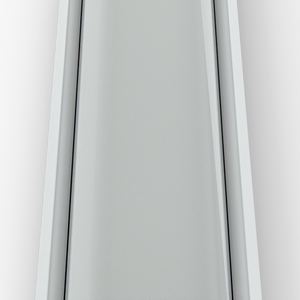

Polyurethane is utilized in ADONIS to make it more resistant to impact from salt water UV light and solvents.

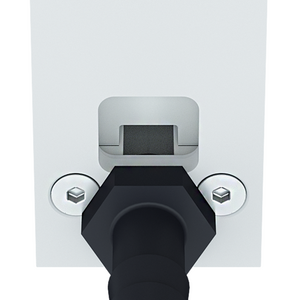

A special chamber for the water management and drainage option for end caps.
ADONIS
Minimalist aesthetics combined with outstanding functionality – ADONIS impresses as a thoughtful lighting system. The high-performance opal encapsulated linear luminaire in IP67 with small form factor provides a lumen current of up to 2,620 lm/m.
ADONIS is characterized by its formal elegance and absolutely dot-free, homogeneous light emission surface. It is IP67 protected against water, salt water, solvents and UV radiation by an opal polyurethane encapsulation. The utilized polyurethane features a 5 times higher chemical resistance and a 10 times lower water transmission compared to typical silicones for LED applications in the relevant temperature range (-50°C to 80°C). Furthermore, this fixture is IK10 certified and therefore particularly robust against environmental impacts. It is available in five standard lengths and is supplied ready to plug in with a IP67 mini connector. It fascinates with a simple installation with internal mounting clips for recessed or surface-mount without visible light joints and connections, fulfilling the high demands in the professional area. With the easy installation and high resistance, it is ideally suited for a variety of applications, both indoors and outside such as facades, tunnels, roads, parking lots, halls, swimming pools, libraries and kitchens.
Technische Spezifikationen
Lichtverteilungskurven
Abmessungen
Elektrische & optische Betriebsdaten
| Spannung | VDC (23 Vmin, 25 Vmax) | ||||
|---|---|---|---|---|---|
| HD6 | HD10 | HD15 | HD25 | HD36 | |
| Leistung (W/m) | 6 | 10 | 15 | 25 | 36 |
| Effizienz (lm/W) | 46 | 45 | 53 | 47 | 69 |
| max. Länge (m) | 1,83 | 1,83 | 1,83 | 1,83 | 1,83 |
| max. serielle Lauflänge bei einer Einspeisung (m) | 5,0 | 5,0 | 4,0 | 3,0 | 2,0 |
| CRI (bis zu) | 95 | 95 | 85 | 85 | 85 |
| Farbtemperatur | HD6 | HD10 | HD15 | HD25 | HD36 | |
|---|---|---|---|---|---|---|
| Bestellnummer | CCT Leuchte | lumen/m (lm/m) | ||||
| W820 | 1.900 K | 230 | 400 | 680 | 1030 | 1430 |
| W822 | 2.100 K | 260 | 430 | 750 | 1120 | 1640 |
| W825 | 2.300 K | 270 | 490 | 800 | 1280 | 1760 |
| W827W927 | 2.500 K 2.500 K | 260 | 440 | 970 | 1360 | 1990 |
| W830W930 | 2.800 K 2.800 K | 270 | 450 | 990 | 1440 | 2040 |
| W835W935 | 3.200 K 3.200 K | 280 | 460 | 1020 | 1510 | 2120 |
| W840W940 | 3.700 K 3.700 K | 280 | 470 | 1030 | 1550 | 2160 |
| W850 | 4.500 K | 370 | 610 | 1060 | 1570 | 2210 |
Montagemöglichkeiten
Powder-coated indoor in-ground channel. End caps required to cover the ends of the inground channel before installation. Available with or without drainage nozzle.
Powder-coated indoor in-ground channel. End caps required to cover the ends of the inground channel before installation. Available with or without drainage nozzle.
Endcap set without drainage nozzle.
Clip with mounting lock for Contour 010 Inground Channel.
End cap set with drainage nozzle.
Use to take the fixture out of the inground frame. Use according to the mounting instruction.
